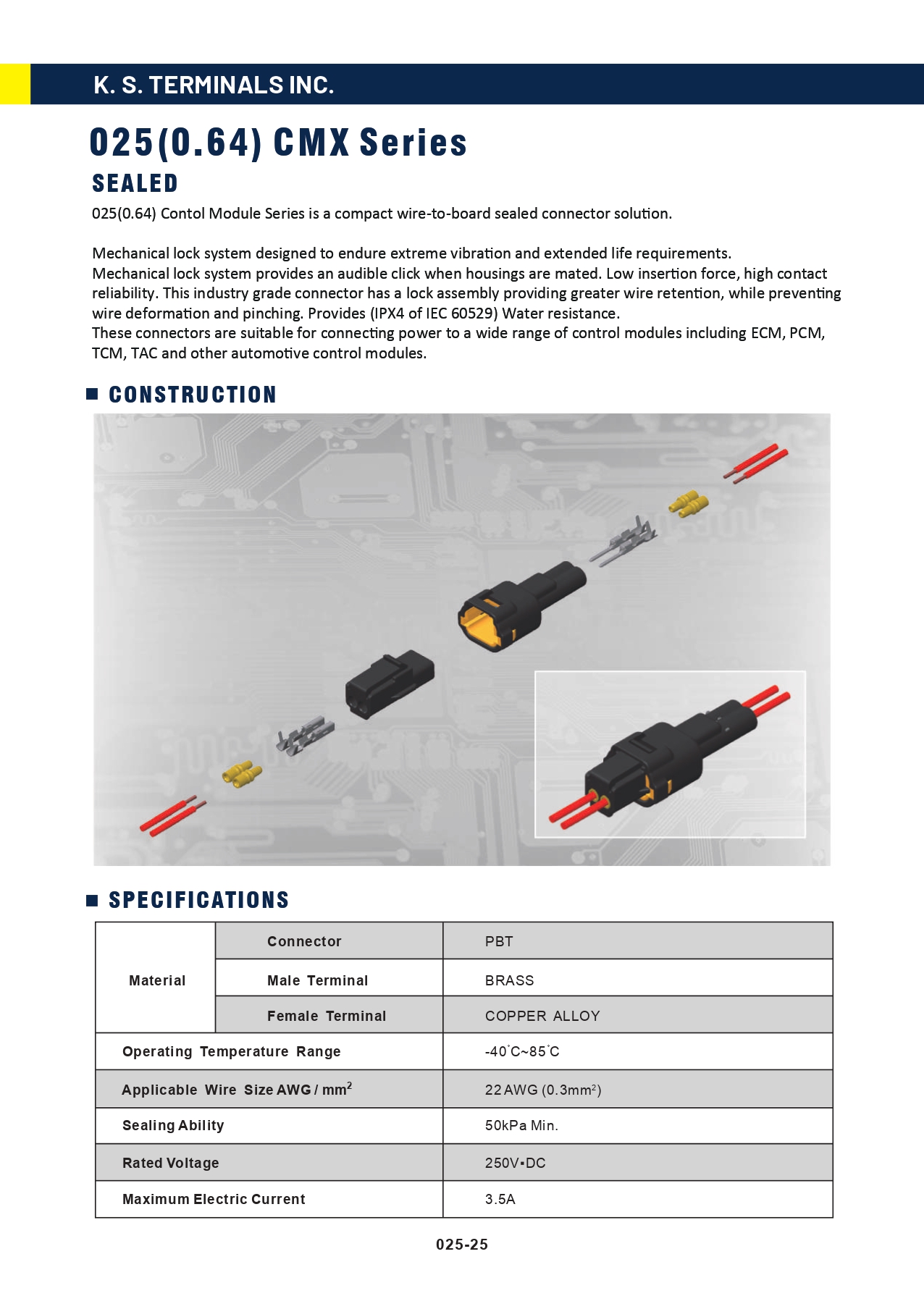

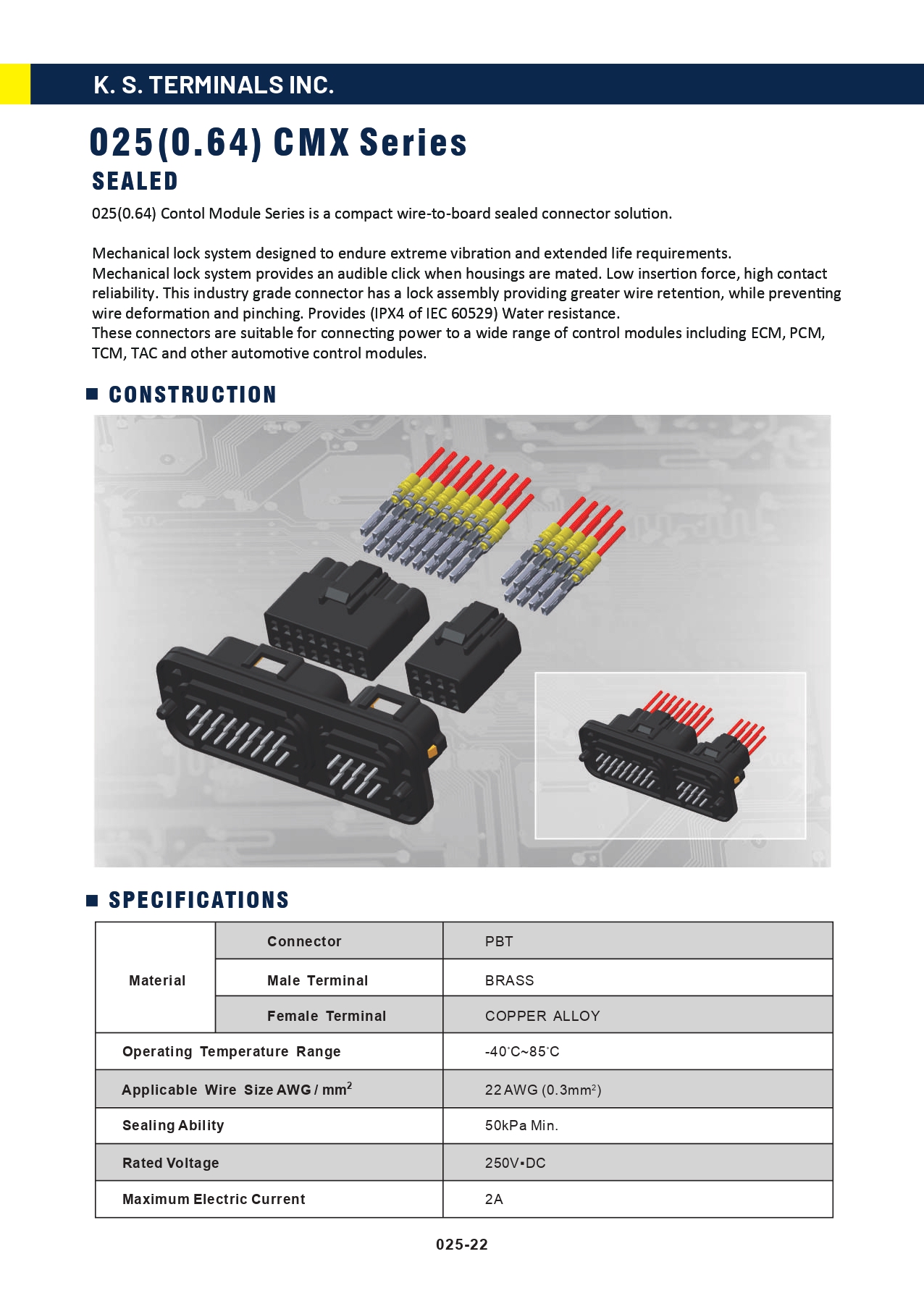

#025(0.64) CMX Series
025(0.64) Contol Module Series is a compact wire-to-board sealed connector solution.
Mechanical lock system designed to endure extreme vibration and extended life requirements.
Mechanical lock system provides an audible click when housings are mated. Low insertion force, high contact
reliability. This industry grade connector has a lock assembly providing greater wire retention, while preventing
wire deformation and pinching. Provides (IPX4 of IEC 60529) Water resistance.
These connectors are suitable for connecting power to a wide range of control modules including ECM, PCM,
TCM, TAC and other automotive control modules.

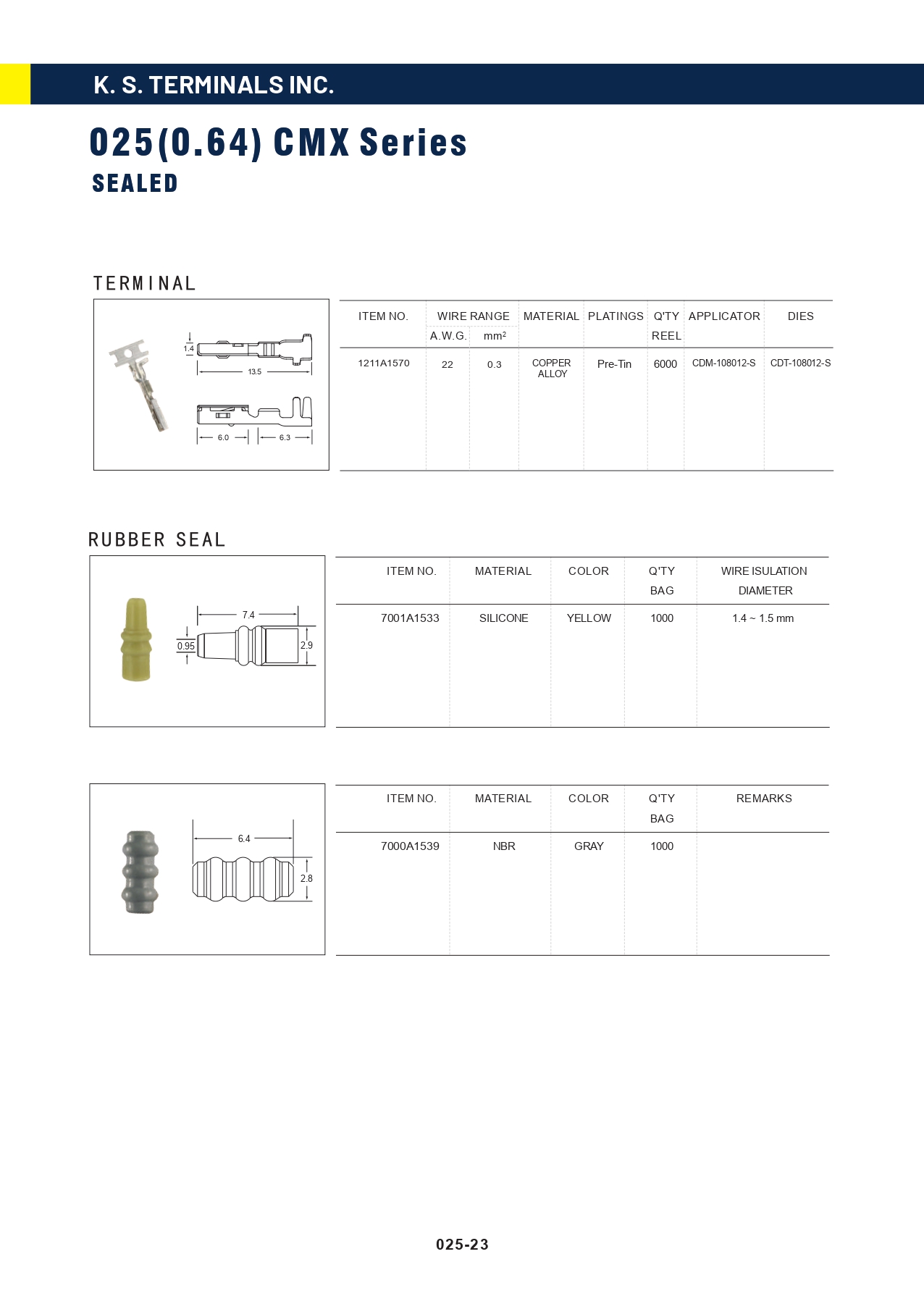

#1211A1570,7001A1533,7000A1539,3108A1572,3208A1572,9908A1572,3116A1572,
#3216A1572,9916A1572,3124A1572,9924A1572
#1101A1580,3102A1582,3202A1582,3103A1582,3203A1582,3104A1582,
#3204A1582,3108A1582,3208A1572
