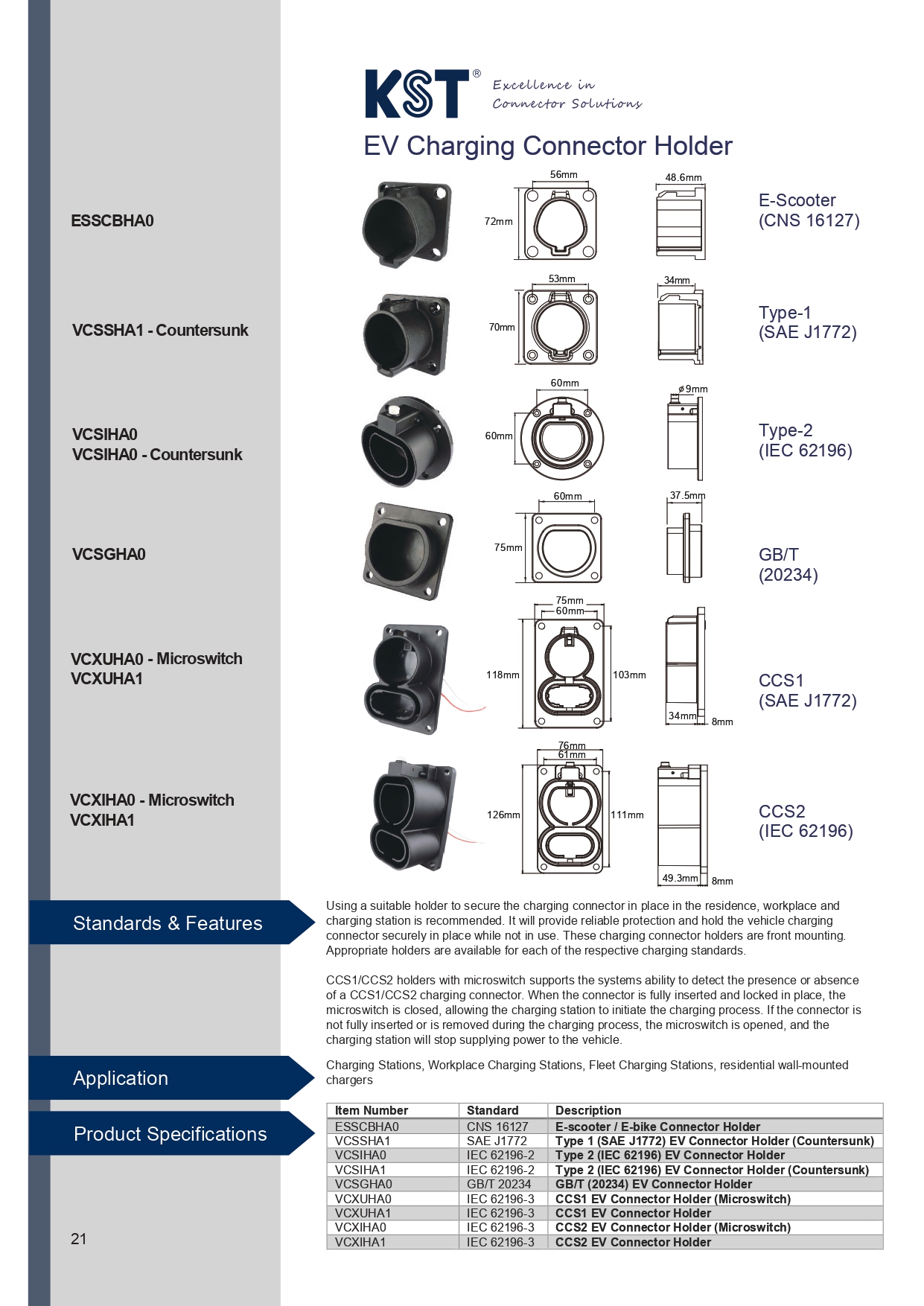

EV Charging Connector Holder
#EV Charging Connector Holder
Using a suitable holder to secure the charging connector in place in the residence, workplace and charging station is recommended. It will provide reliable protection and hold the vehicle charging connector securely in place while not in use. These charging connector holders are front mounting. Appropriate holders are available for each of the respective charging standards.
CCS1/CCS2 holders with microswitch supports the systems ability to detect the presence or absence of a CCS1/CCS2 charging connector. When the connector is fully inserted and locked in place, the microswitch is closed, allowing the charging station to initiate the charging process. If the connector is not fully inserted or is removed during the charging process, the microswitch is opened, and the
charging station will stop supplying power to the vehicle. Charging Stations, Workplace Charging Stations, Fleet Charging Stations, residential wall-mounted chargers
#ESSCBHA0 #CNS 16127
#VCSSHA1 #SAE J1772
#VCSIHA0 #IEC 62196-2
#VCSIHA1 #IEC 62196-2
#VCSGHA0 #GB/T 20234
#VCXUHA0 #IEC 62196-3
#VCXUHA1 #IEC 62196-3
#VCXIHA0 #IEC 62196-3
#VCXIHA1 #IEC 62196-3
