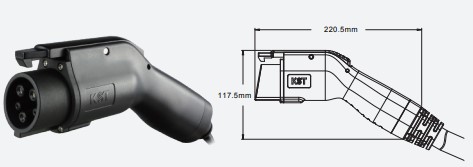

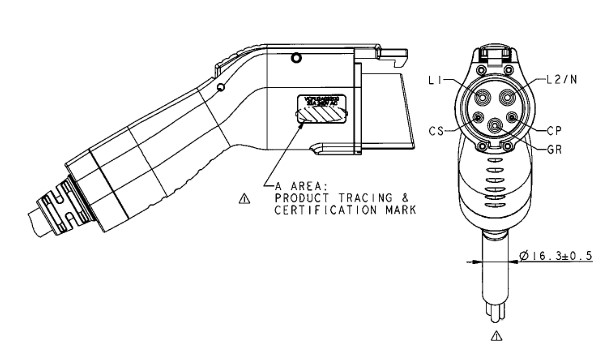

#EV Charging Connector Type 1 (SAE J1772) The VCPU series of EV Charging Connectors conform to Type 1 (SAE J1772) interface design, and are suitable for Mode 2 and Mode 3 applications. This single-phase charging solution conforms to the UL 2251 standard and is therefore suitable for the United States and Canada. • The EV Charging connector is durable providing low contact resistance and is able to withstand a minimum of 10,000 insertion and removals without damage to the cable or connector. • Ergonomic, rugged, unibody design provides optimal comfort and intuitive handling. • Conforming to the UL 2251 standard, this single-phase charging solution is suitable for the United States and Canada.. • Products passed 5000N driveover test
Battery Equiped Vehicle (BEV), PHEV, Carging Station, Portable EV Connector Cables and Residential Wall-mounted Chargers IEC 61851: Charging Mode 2, Case B (SAE J1772) Charging Mode 3, Case B and Case C
#EV Charging Connector Type 1 #หัวชาร์จรถยนต์ไฟฟ้า Type1 #Type 1 connector
